Vibratory Bowl Feeder System

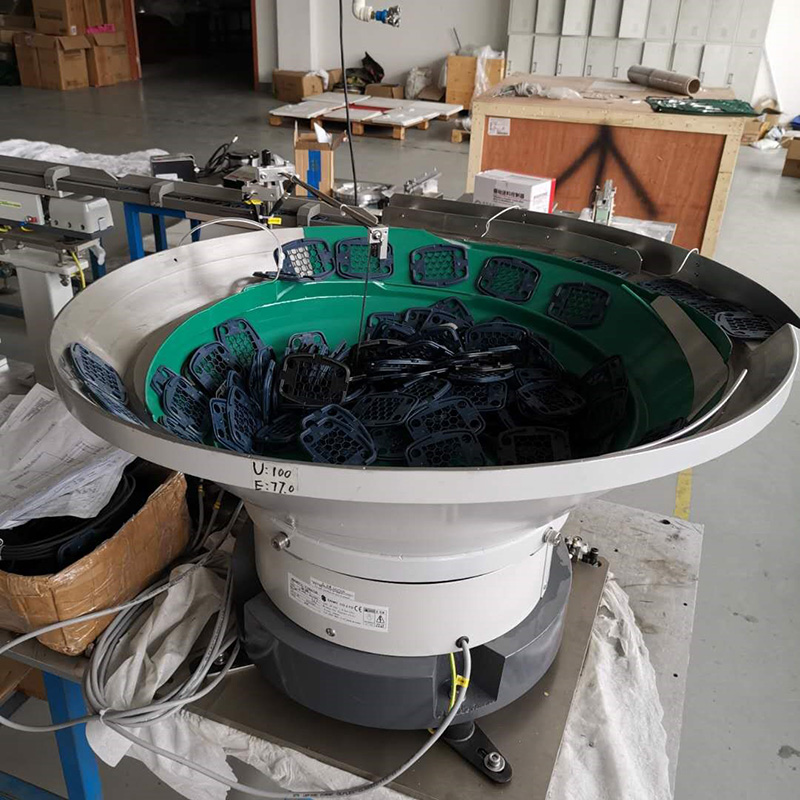

Vibratory bowl feeders can be used for feeding and orienting parts one after another. They can gradually shake the parts so that they are all aligned for the next process. The bowl feeders are self-contained devices, with a special bowl to orient the parts. The vibrating bowl is driven by the drive unit, which can force the parts to move up a circular, inclined track. The track length, width and depth depend on the shape and size of the parts. They can also support multiple lines feeding.

Our custom feeding systems are designed with your specific requirements in mind and engineered to meet your required orientation and feed rate for your application. Optimal features can be chosen if you need to apply them to high feed rate system, gentle part handling or food and pharmaceutical industries. They can also ensure consistent transport of the parts, thus maximizing the efficiency.

The vibratory feeder bowls are made from stainless steel and other high-wear materials. With inner synthetic fibers coating or special polished surface, it can prevent damage to the parts and reduce noise. We offer 4 types of different bowls.

• Sound enclosure
• 316L stainless steel construction of medical or food hygienic level
• Local PLC (programmable logic controller) programming

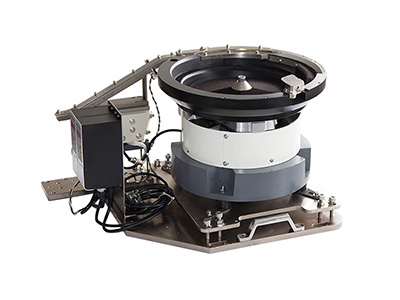

CNC Vibratory Bowl Feeder CNC vibratory bowl feeder has integrated design with striking design, high precision and fast output
Parameters: Material feed rate: 100pcs/min
Material size: 0.1-10mm
Material weight: 1-10g

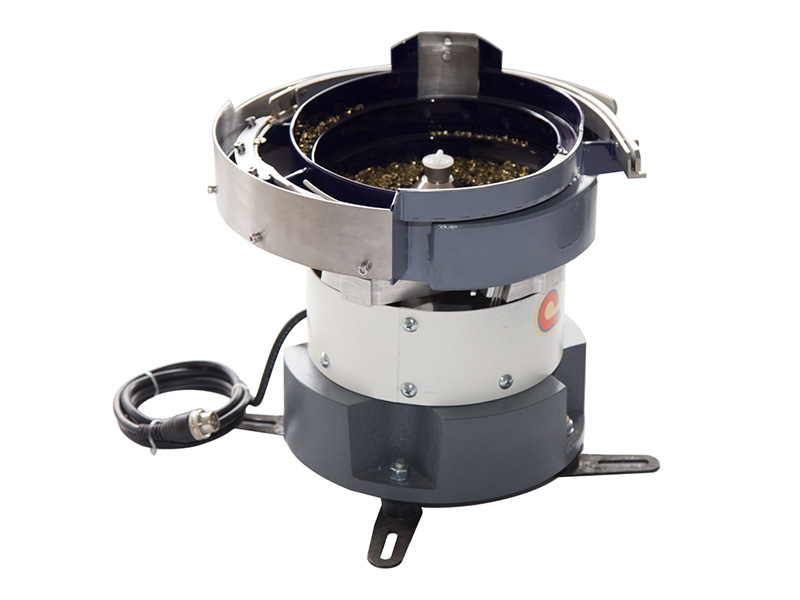

Cylindrical Vibratory Bowl Feeder Cylindrical vibratory bowl feeder is durable and widely applicable, suitable for vibration feeding of different parts
Parameters: Material feed rate: 300pcs/min
Material size: 10mm
Material weight: 20g-50g

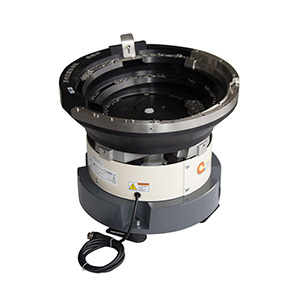

Conical Vibratory Bowl Feeder They are designed for simple materials, and the feeding speed is stable
Parameters: Material feed rate: 400pcs/min
Material size: 10mm
Material weight: 20g-50g

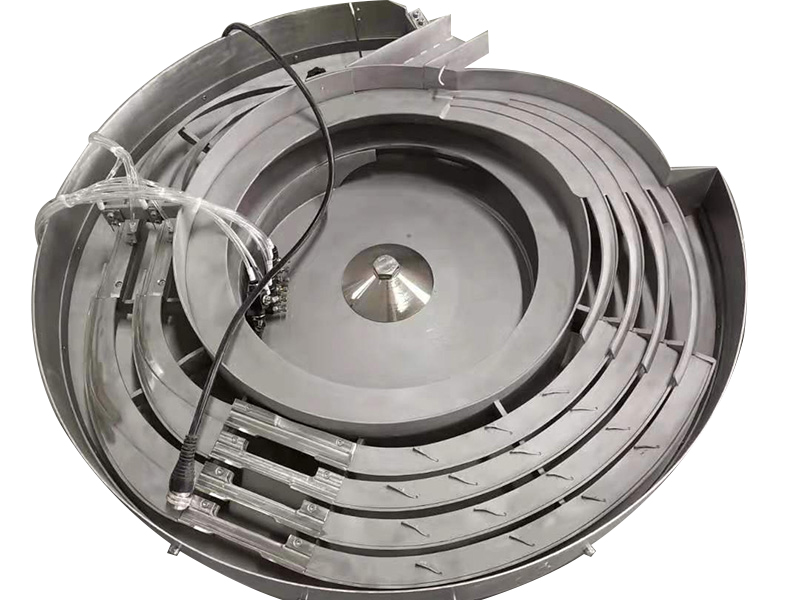

Stepped Shapes Vibratory Bowl Feeder The feeding speed is stable.
Parameters: Material feed rate: 300pcs/min
Material size: 10mm
Material weight: 20g-50g
