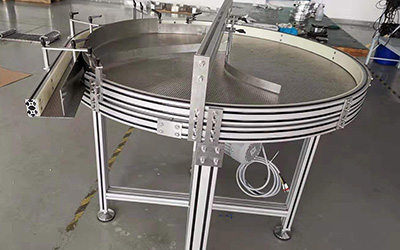

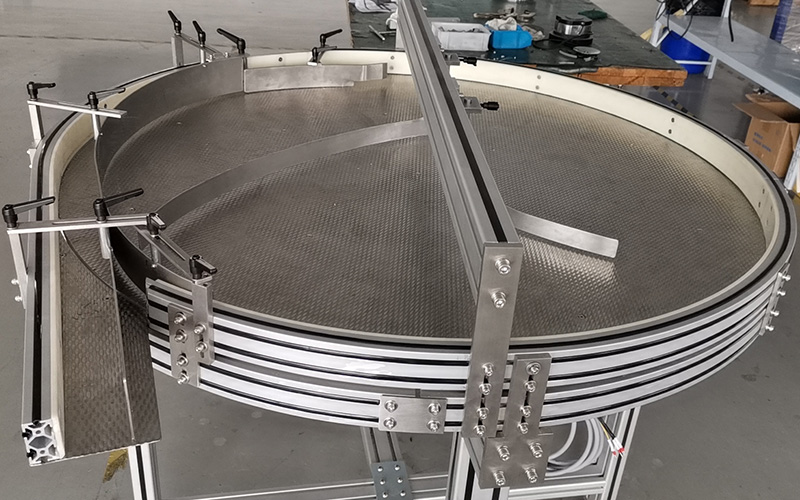

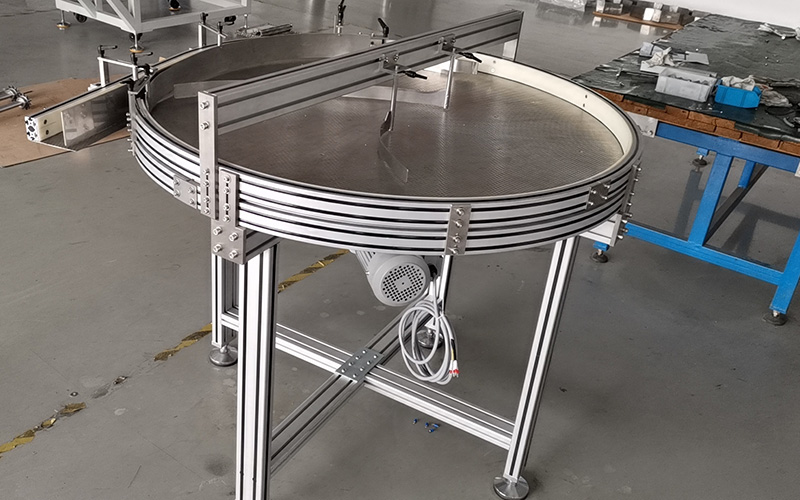

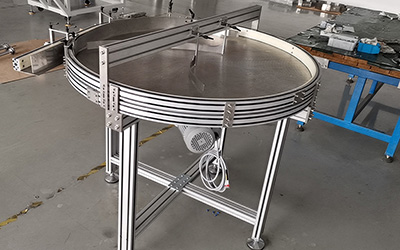

Centrifugal Feeder System

Centrifugal feeder systems do not need vibrating to move the parts, instead, they use the rotary force. There is an electric-driven conical central rotor surrounded by a circular bowl rim, casting the parts to the outer edge of the rim. The centrifugal feeder systems are mostly used for those applications with special requirements such as high-speed transporting and gentle handling. They are designed to ensure highly efficient manufacturing process. Compared with vibratory feeder systems, centrifugal ones can operate more quietly and more efficiently, with low downtime. Our feeders are especially used for feeding those parts with low tendency to tangle at a high speed. We can provide customized centrifugal feeding system according to your needs.

• Material feed rate: 1-2000 pieces/min
• Material size: 200mm-1500mm
• Material weight: 0.01kg-2kg

Single centrifugal feeders: single centrifugal feeders are suitable for small number of delicate parts

Dual centrifugal feeders: dual centrifugal feeders have double feed rate, their speed is faster, so it is suitable for large number of parts
