Stepper Feeder System

  • Stepper Feeder System
  • Stepper Feeder System
  • Stepper Feeder System

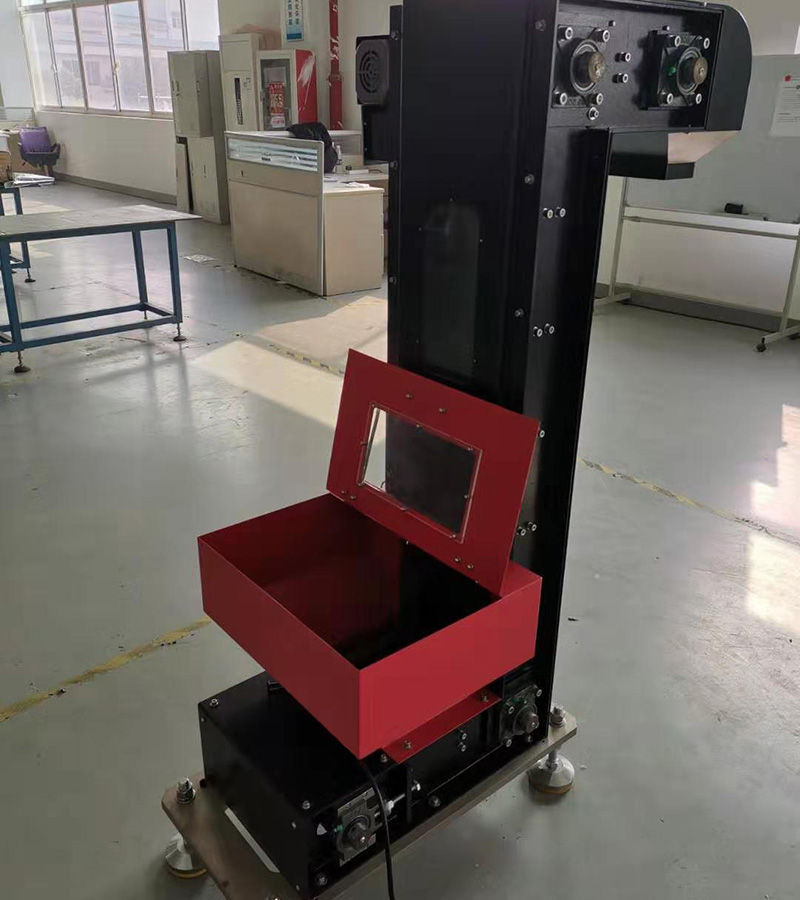

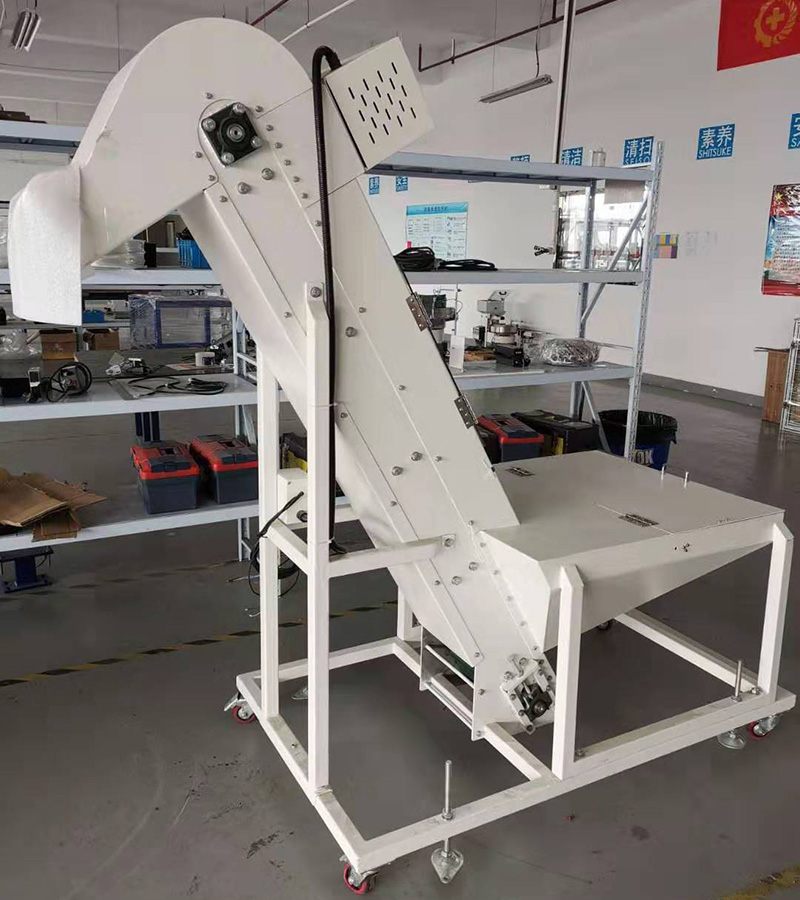

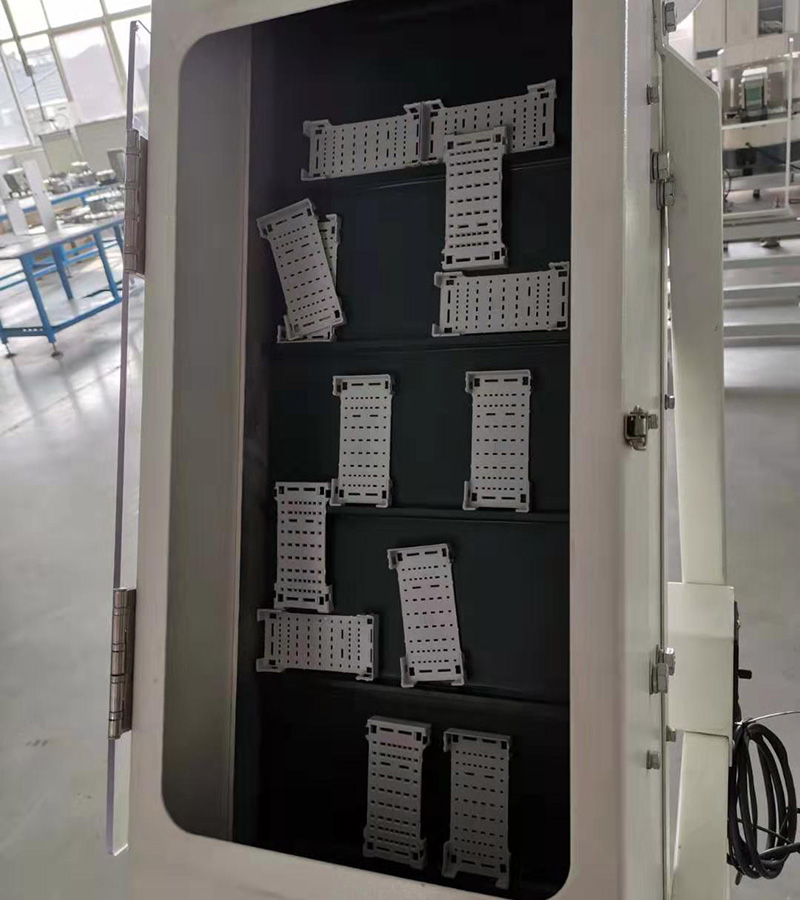

As a basic device in the feeding of parts, the stepper feeder can lift the workpieces to the top with opposed lifting plates within a controllable speed, thus reaching the desired transition height without any further materials-handling technology. The stepper feeder system can also handle large parts at higher rates than can be achieved in most traditional vibratory feeders, thus accelerating the whole feeding process. We can design different types of hoppers and elevators which can hold different amounts of parts according to your specific needs. The feed rate of the stepper feeder is also under control.

Features
  • Sizes and capacities are highly customizable
  • Long running time, high precision
  • Suitable for small and light parts
  • Quick parts changeover
Parameters
  • Material feed rate: 30pcs/min
  • Material size: ＞20mm
  • Material weight: ＞50g

As a professional feeder manufacturer, HongChao specializes in providing custom feeder solutions to fit your part handling needs. Our automated parts handling system is capable of achieving high efficiency production in a variety of industries covering automotive, electronics, pharmaceutical, consumer goods, robotics, cosmetics, food and beverage where require automated bulk handling solution. HongChao is a competent cooperative partner provides you with custom feeder systems that meet your various feeding needs.
